电动浆液阀安装尺寸以及外形图

产品概述
电动浆液阀型号为Z973X，采用多回转电动装置，用以驱动和控制阀门的开启和关闭，操作人员可以在控制室内远距离对阀门进行控制，也可以现场手动操作，也可以与计算机配合实现。
本阀门适用于糖浆、纸浆、泥浆、污水、煤浆等介质管路上，作启闭调节和节流使用，适用于水平安装，亦可倾斜安装。
技术参数范围
公称压力：0.6MPa，1.0MPa，1.6MPa
公称通径：DN50-DN1000
适用温度：-10~+200℃
连接法兰：GB/T9113、JB/T79
主体材料：HT250，WCB，CF8
密封型式：软密封
泄 漏 量：A级（零泄漏）
配套附件：安装法兰
电动装置参数
1、电源：AC220V、AC380V、50HZ、60HZ
2、标准型：标准型产品具有防尘、防雨水的外壳保护能力、防护等级IP65,可直接用于户外
3、防水型：防水型产品具有防尘、防浸水(IP67)的外壳防护等级
4、防爆型(EX)：防爆等级为DII BT4/DII CT4(不含乙炔)
5、环境温度：-20℃～40℃
6、可选：配电气控制器
电动装置特点
1、启闭迅速，平稳可靠，自动化程度高
2、安装高度及位置不受限制
3、可以采用防爆型电动装置，在易燃易爆，甚至有毒气体环境中也可以正常工作
4、配有手动，万一供电间断，可以手动操作开启或关闭浆液阀，有效控制介质，防止事故发生
Product introduction
Electric slurry valve type for Z973X, adopt multi-turn electric device, is used to drive and control the opening and closing of the valve, operators can to control the valve in the control room distance, can also be the scene manual operation, can also cooperate with computer implementation.
The valve is suitable for pipeline conveying such mediumsin cluding syrup,paper pulp,sludge,sewage,coal slurry,etc.for controlling switching on/off and throttling.It allows horizontal mounting as well as inclined mounting.
Technical Parameter Range
Nominal pressure:0.6MPa，1.0MPa，1.6MPa
Nominal diameter:DN50-DN1000
Suitable temperature:-10~+200℃
Flange drilling:GB/T9113、JB/T79
Main materials:HT250，WCB，CF8
Seal type:Teflon soft seal
Accessories:Flange
Electric actuator parameters
1、Power supply: AC220V, AC380V, 50 hz, 60 hz
2、Standard: standard products with dust, prevent the rain shell, protective class IP65 protection ability, can be directly used in outdoor
3、Waterproof model: waterproof type products with dust, prevent flooding (IP67) shell protection grade
4、Explosion-proof type (EX) : explosion-proof grade for DII BT4 / DII CT4 (excluding acetylene)
5、Ambient temperature: - 20 ℃ to 40 ℃
6、Optional: electrical controller
Electric actuator characteristics
1、Opening and closing fast, stable and reliable, high degree of automation
2、Installation height and position is not restricted
3、Explosion proof electric actuator can be used in inflammable and explosive, and toxic gases can work normally in the environment
4、Equipped with manual, one thousand a continuous power supply can be opened or closed manually slurry valves, effective control of medium, prevent accidents

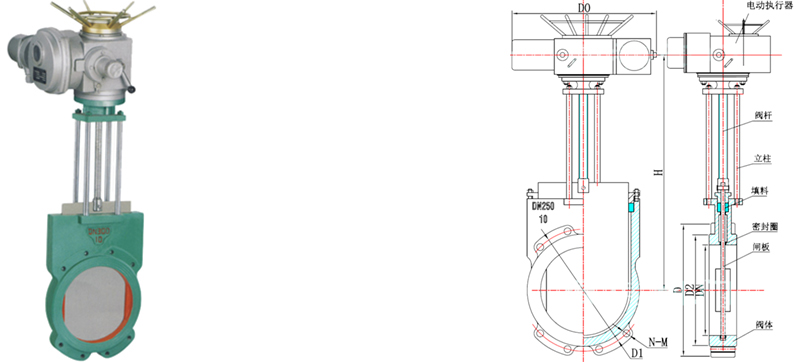

主要外形及连接尺寸Profile and connection dimension												单位Unit:mm
PN	DN	L	D	D1	D2	H	N-M	Do	PN	DN	L	D	D1	D2	H	N-M	Do
0.6	50	40	125	100	90	370	4-16	180	1.0	50	40	125	100	99	370	4-16	180
	65	40	145	120	100	460	4-16	180		65	40	145	120	120	460	4-16	180
	80	50	160	135	125	590	4-16	220		80	50	160	135	135	590	4-16	220
	100	50	180	155	145	780	4-16	220		100	50	180	155	155	780	4-16	220
	125	50	210	185	175	950	4-16	230		125	50	210	185	185	950	4-16	230
	150	60	240	210	200	980	4-20	280		150	60	240	210	210	980	4-20	280
	200	60	295	265	255	1055	4-20	360		200	60	295	265	265	1055	4-20	360
	250	70	350	320	310	1060	8-20	360		250	70	350	320	310	1060	8-20	360
	300	70	400	368	362	1230	8-20	400		300	80	400	368	375	1230	8-20	400
	350	80	460	429	412	1250	10-20	400		350	90	460	429	435	1250	10-20	400
	400	80	515	482	462	1767	10-22	400		400	120	515	482	485	1767	10-22	400
	450	90	565	532	518	1920	14-22	530		450	120	565	532	545	1920	14-22	530
	500	100	620	585	568	2010	14-22	530		500	130	620	585	609	2010	14-22	530
	600	100	725	685	670	2110	14-27	600		600	140	725	685	720	2110	14-27	600
	700	100	940	800	775	2400	16-27	600		700	140	940	800	788	2400	16-27	600
	800	120	950	905	880	2800	16-27	680		800	150	950	905	898	2800	16-27	680
	900	120	1050	1005	980	3000	20-30	680		900	150	1050	1005	998	3000	20-30	680
